RB150 Vertical platform lift

  • Spacious and Modern Design;
  • No Shaft Required;
  • Fast Installation and Easy Maintenance.

The RB150 vertical platform lift ensures safety, comfort, and durability, making everyday mobility simpler and more convenient.

RB150

Wheelchair Lift

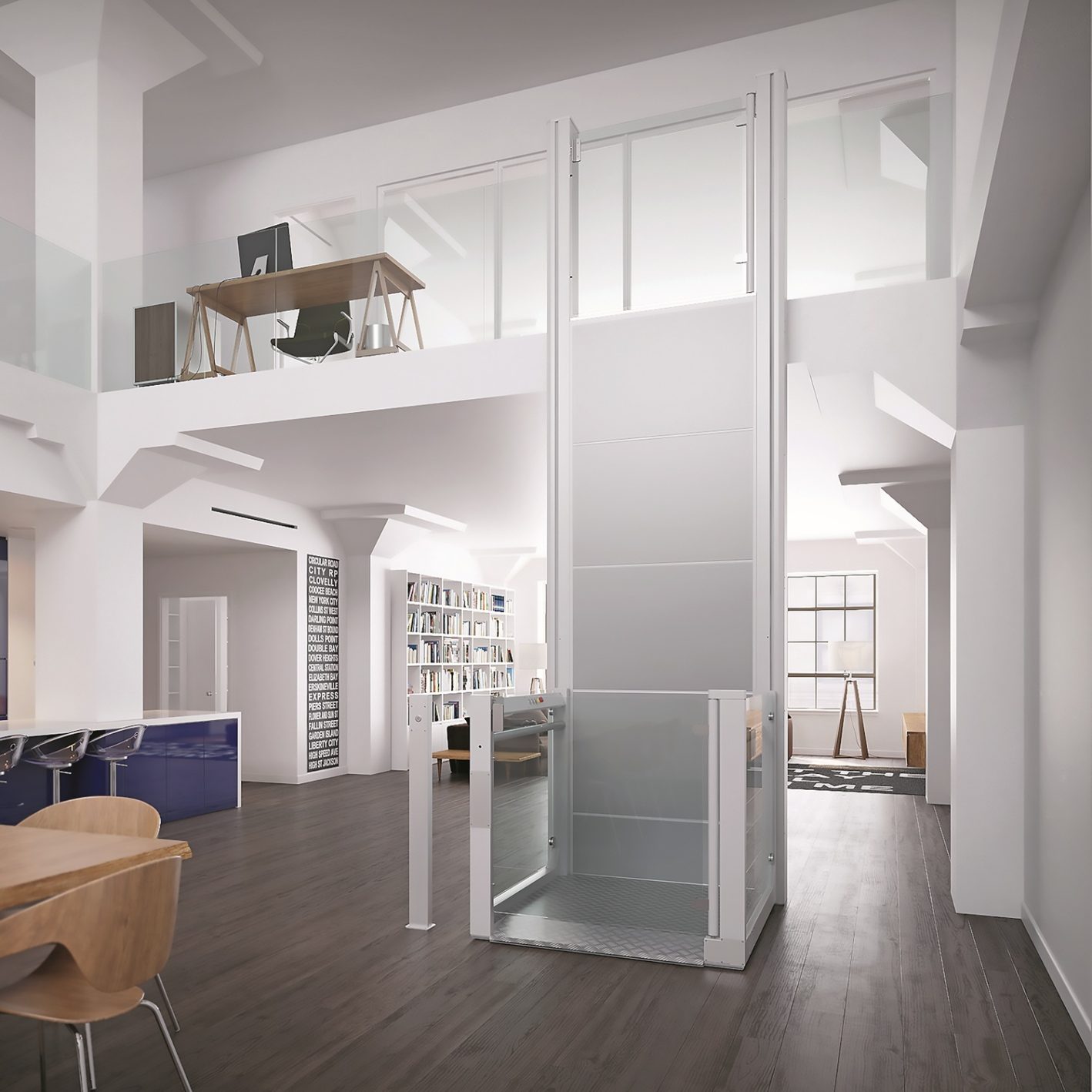

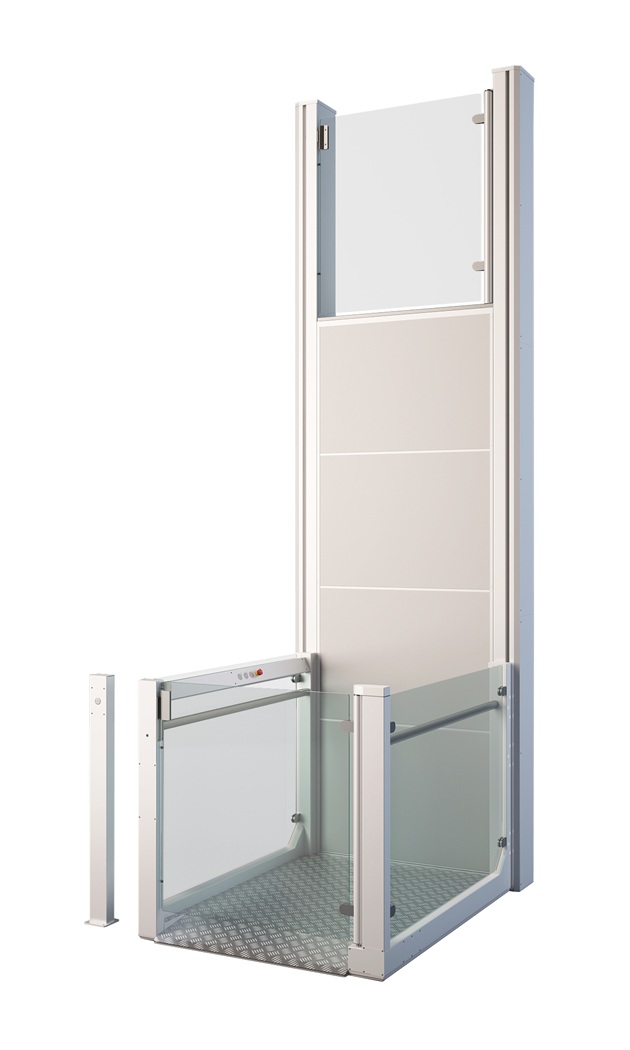

The RB150 is a modern and aesthetically designed vertical platform lift. It is specifically created to improve accessibility for people with reduced mobility. With its clean lines and minimalist look, this lift blends effortlessly into any architectural style. It offers a smooth, safe, and comfortable ride for every user.

This wheelchair lift offers a lifting height ranging from 600 mm to 3000 mm. It operates quietly and efficiently, ensuring long-term reliability. The open-type construction ensures a sense of spaciousness while maintaining maximum safety standards.

Space optimization is at the core of the RB150 design. It is highly compact and requires minimal site preparation before installation. Because it does not need a deep pit or a separate machine room, it remains an economical and cost-effective solution for any project.

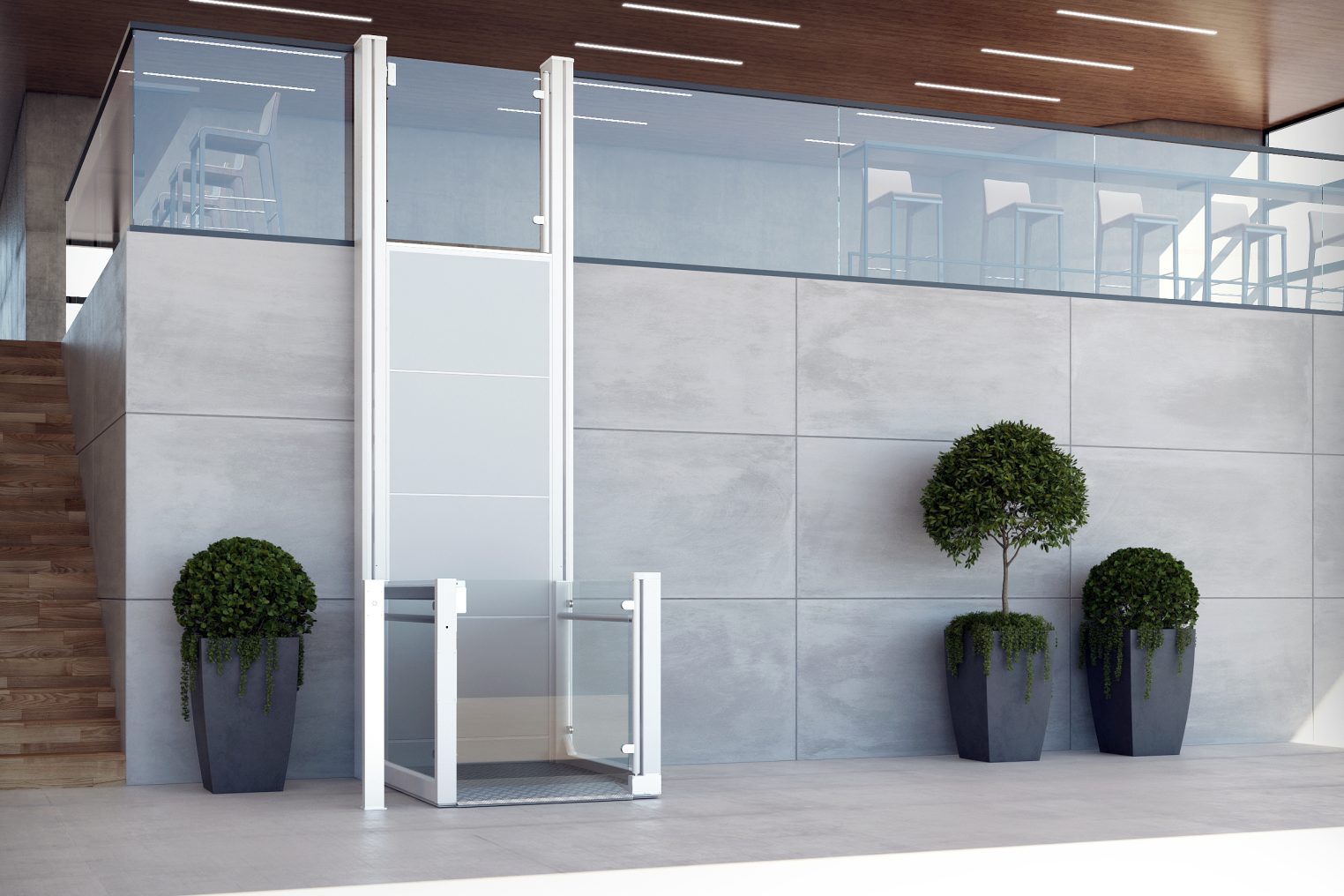

This lift is built from durable, weather-resistant materials. This makes it perfect for both indoor and outdoor installations. It can be easily adapted to a wide range of environments, including:

  • Private homes for independent living.

  • Commercial buildings and modern offices.

  • Public spaces and educational institutions.

Wheelchair lift solutions

Private and public spaces

Platform lift references Barduva

Our wheelchair lift solutions are engineered to provide safe, independent, and barrier-free access in both private and public spaces. The RB150 model stands out as a reliable wheelchair lift, delivering smooth vertical travel, user-friendly controls, and a robust design. Discover our wheelchair lift solutions to ensure complete accessibility for every building.

Learn more

RB150 vertical platform lift advantages

Spacious and Modern Design

Due to its aesthetic appearance, the lift blends seamlessly into any building’s exterior or interior without becoming a visual obstruction.

Minimal Footprint

The specially engineered construction does not clutter the space, making it an ideal choice for locations where every square meter is valuable.

No Shaft Required

This platform lift can be installed without complex construction work, making integration into existing environments simple and affordable.

Ultra-Quiet Operation

Advanced lifting technology ensures smooth and discreet movement that produces minimal noise and does not disturb the surroundings.

Intuitive Control

The simple and clear control system allows every user to operate the device independently without additional assistance.

Fast Installation and Easy Maintenance

The efficient design allows for very quick installation, while simple operation helps to maximize savings on maintenance costs.

Technical specifications

Lifting height (from, to)

600 mm – 3000 mm

Suitability

For internal or external use

Number of stops

2

Rated load

400 kg

Platform size (standard)

1100 x 1400 mm

External dimensions (standard)

1300 x 1760 mm

Cabin height

1100 mm

Doors

950 x 1100 mm

Drive type

Belt drive

Power supply

220–240V, 1 phase, 25A 380–400V, 3 phase, 16A, 50Hz

Lighting

Illuminated buttons

Handles

Integrated into the lift cabin (on both sides)

Flooring

Non-slip textured rubber or non slippery aluminium plate

Color

RAL 9006 (standard)

*other colors available

*outdoor lift have AISI 304 stainless steel finish

Technical safety equipment

Protective perimeter under the platform (optional),

emergency stop buttons inside the platform,

electronic speed control,

overload detectors,

door opening and locking control,

belt tension sensors,

electronic engine control.

Compliance with European Directives

2006/42/EC
