AGB140 Vertical platform lift

Low Lifting Heights;
Spacious Platform;
Safe Movement.

The AGB140 vertical platform lift provides safe and convenient access for wheelchair users and accompanying persons. It is a cost-effective alternative to traditional elevators, especially for low-rise applications in both private and public buildings.

Coming Soon

AGB140 Platform Lift

Suitable for both indoor and outdoor use, the AGB140 vertical wheelchair lift is designed to fit even where space is limited. It is quick to install, easy to operate, and enhances accessibility and quality of life without the need for major construction work. The lift can be controlled via the platform panel or a wireless external controller.

Single electric scissor technology ensures smooth lifting movement and a high level of safety. These lifts are the ideal choice for low lifting heights, offering short delivery times and competitive pricing.

The platform is designed to accommodate one wheelchair user and one accompanying person. The electric single-scissor lifting technology provides a lifting capacity of up to 300 kg and a maximum lifting height of 700 mm.

Gallery

1 / 6

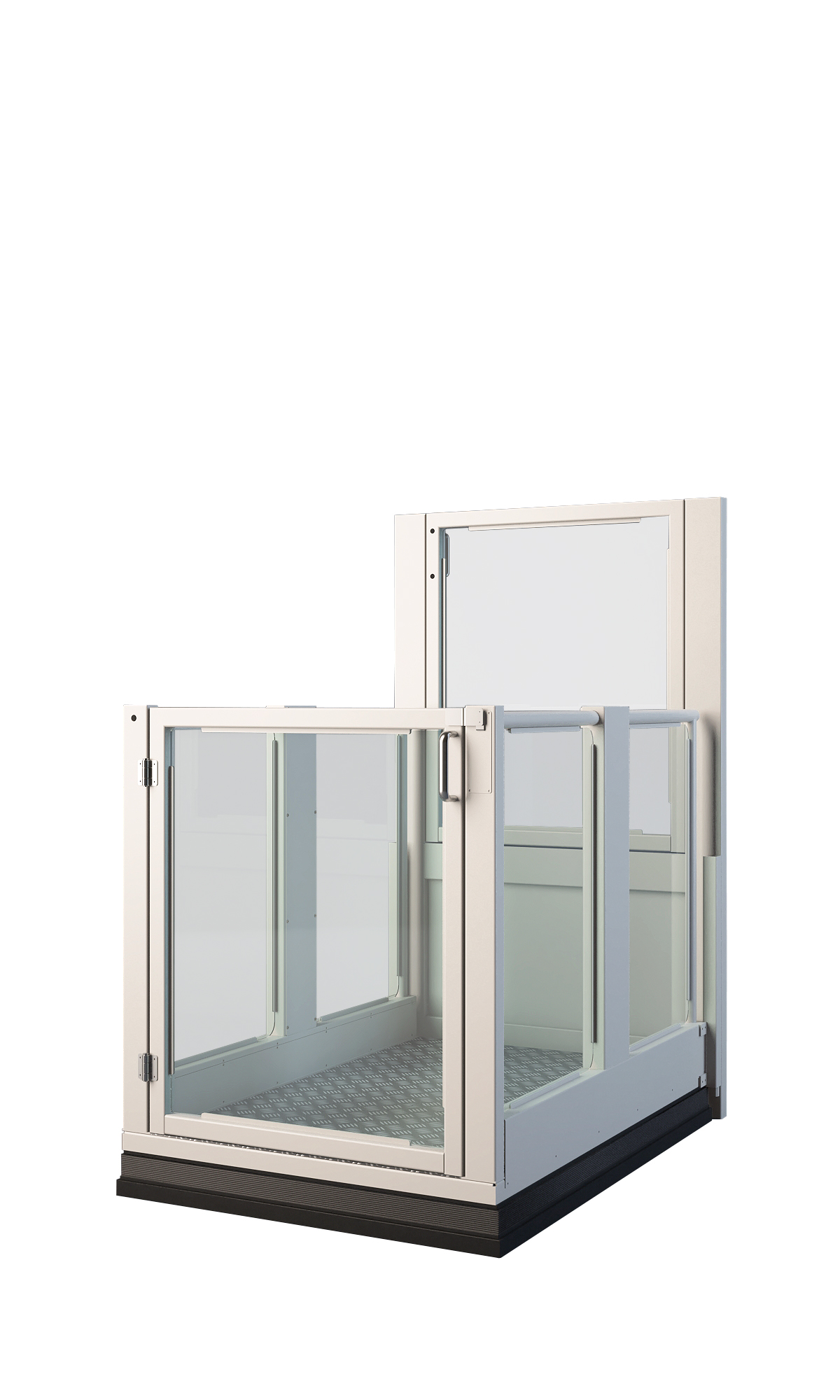

vertical platform lift white AGB140 Barduva

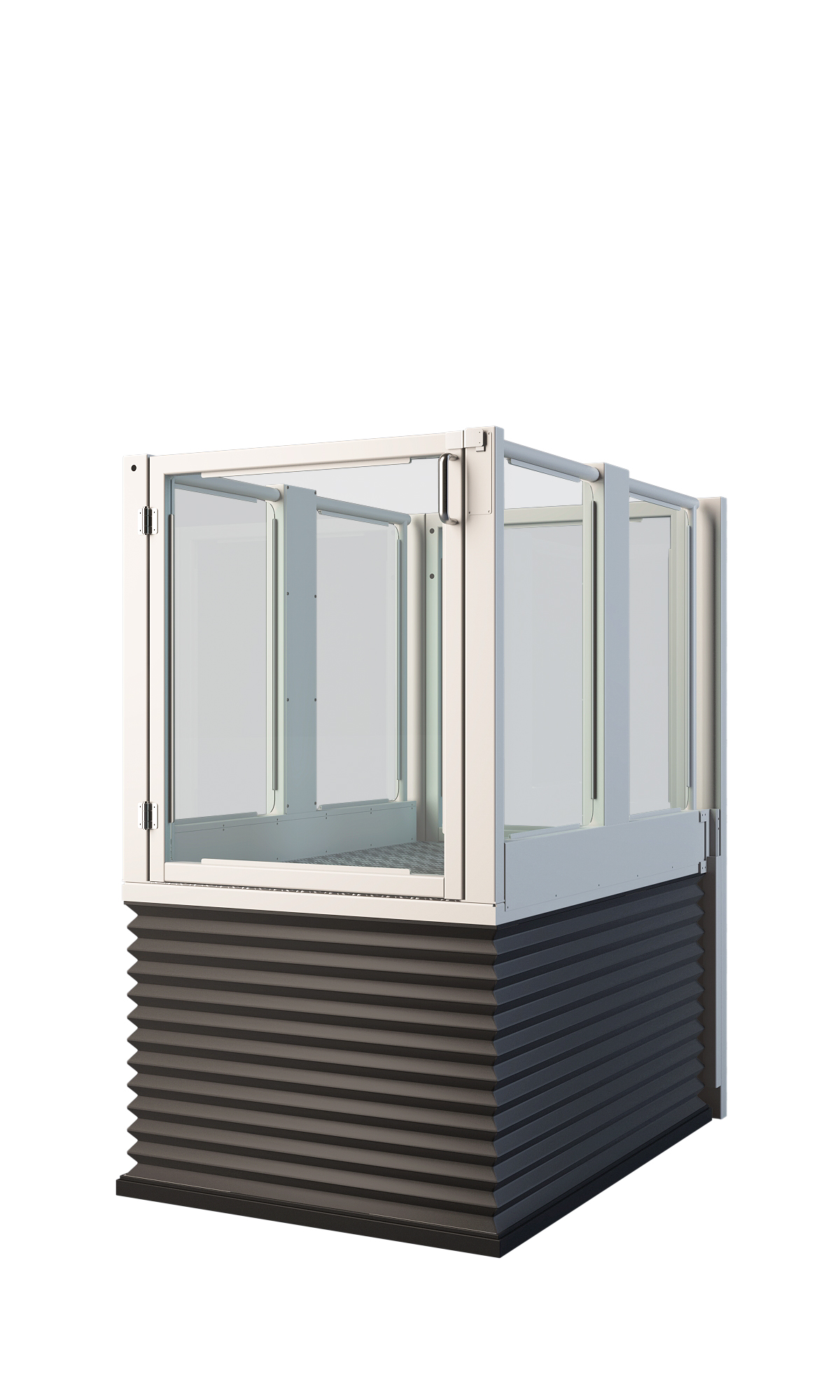

vertical platform lift white up AGB140 Barduva

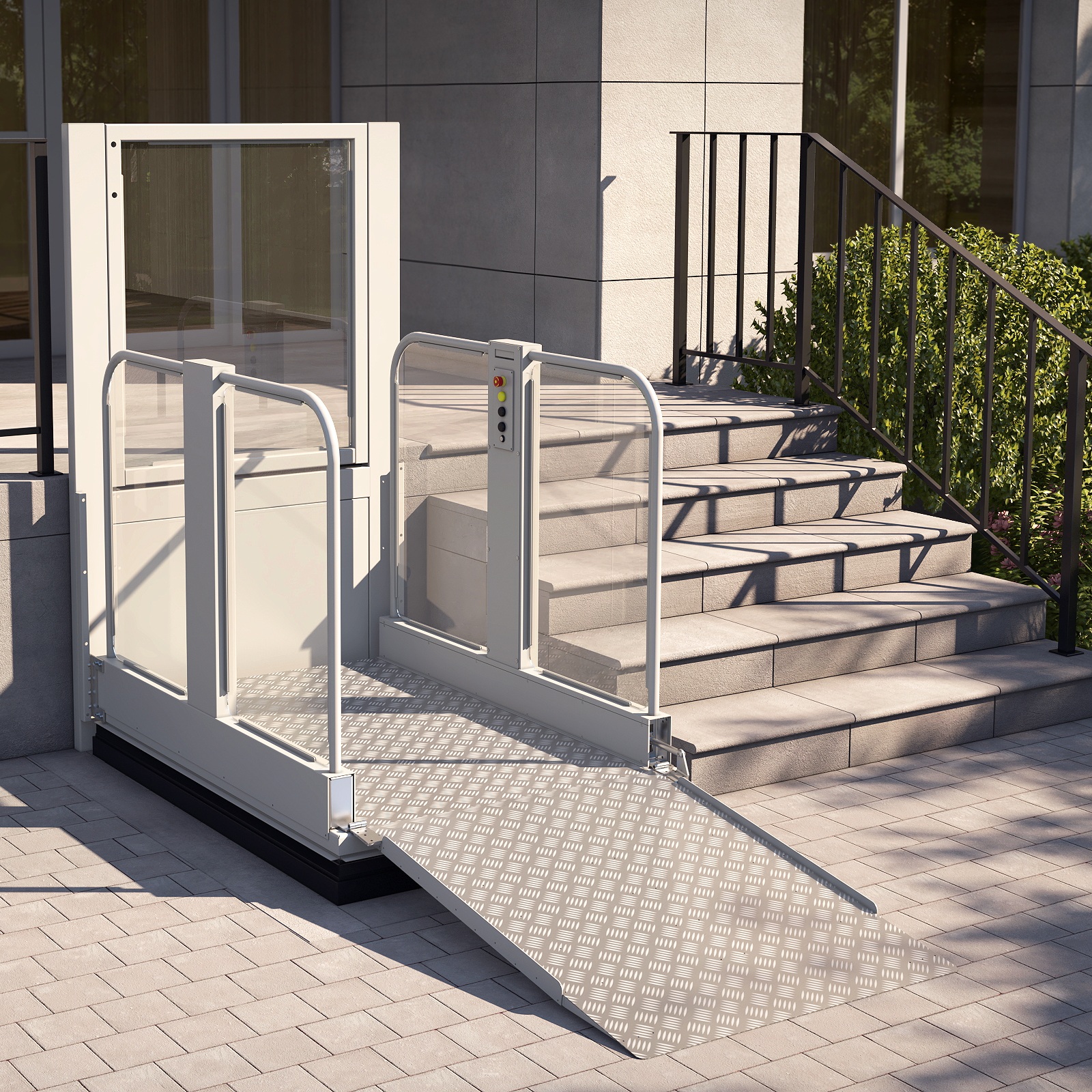

vertical platform lift exterior with ramp AGB140 Barduva

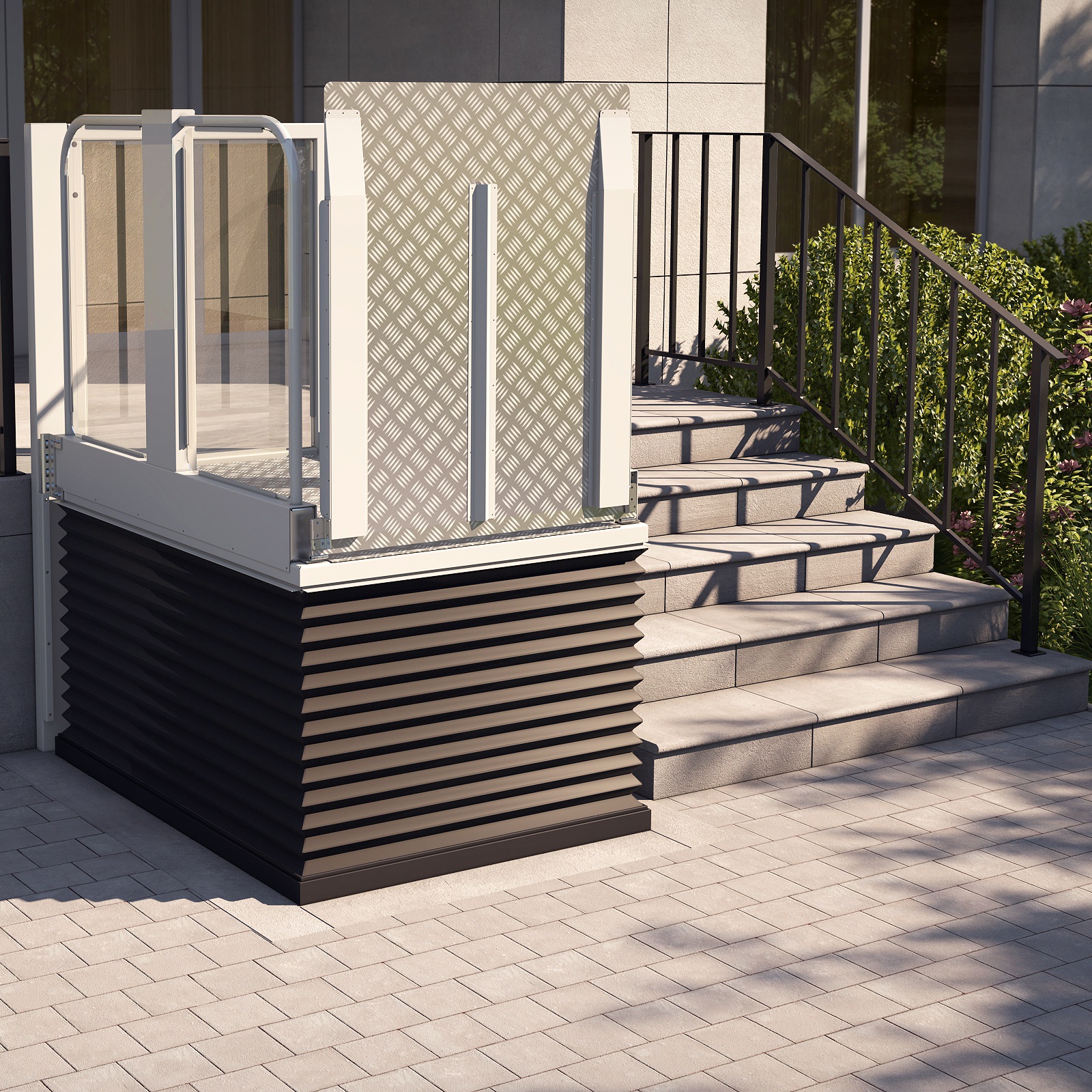

vertical platform lift exterior with ramp up AGB140 Barduva

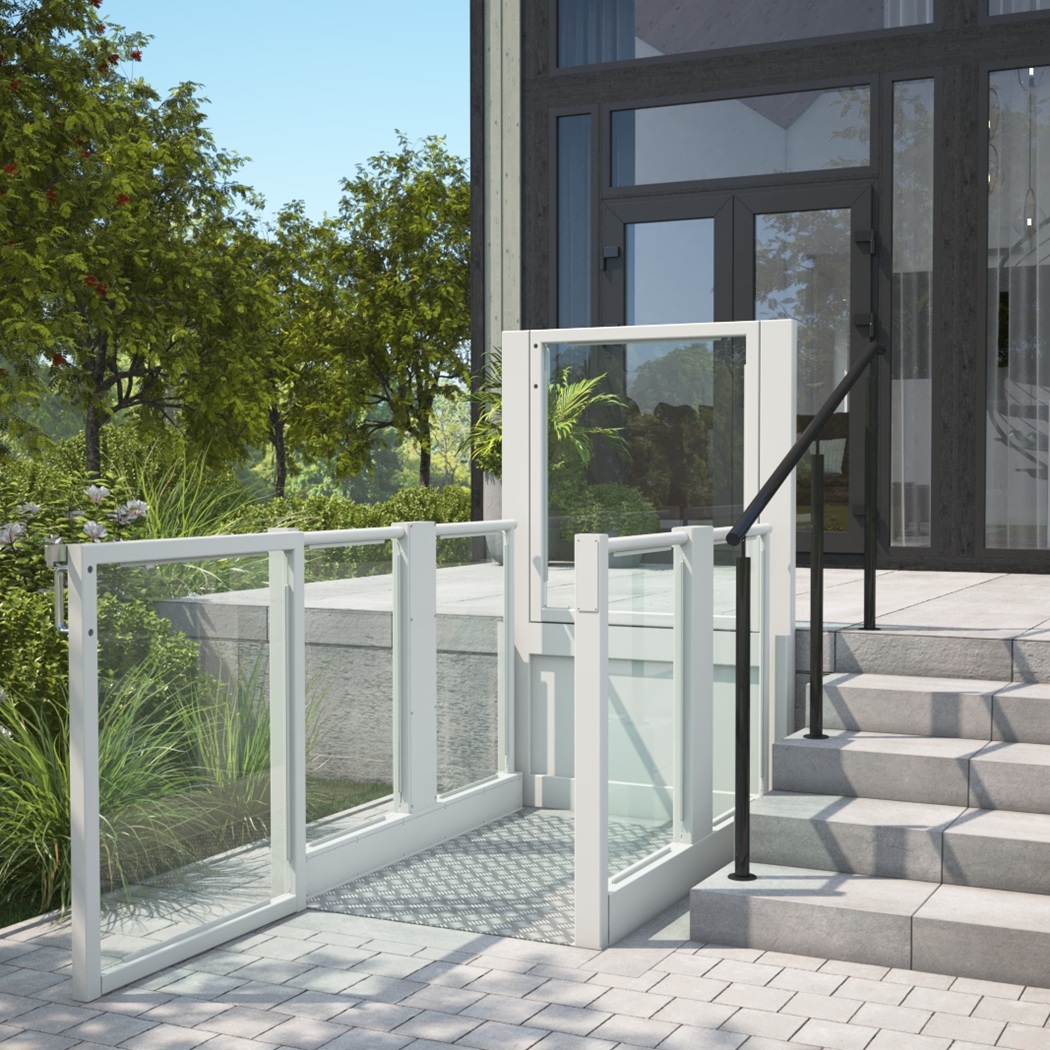

vertical platform lift exterior AGB140 Barduva

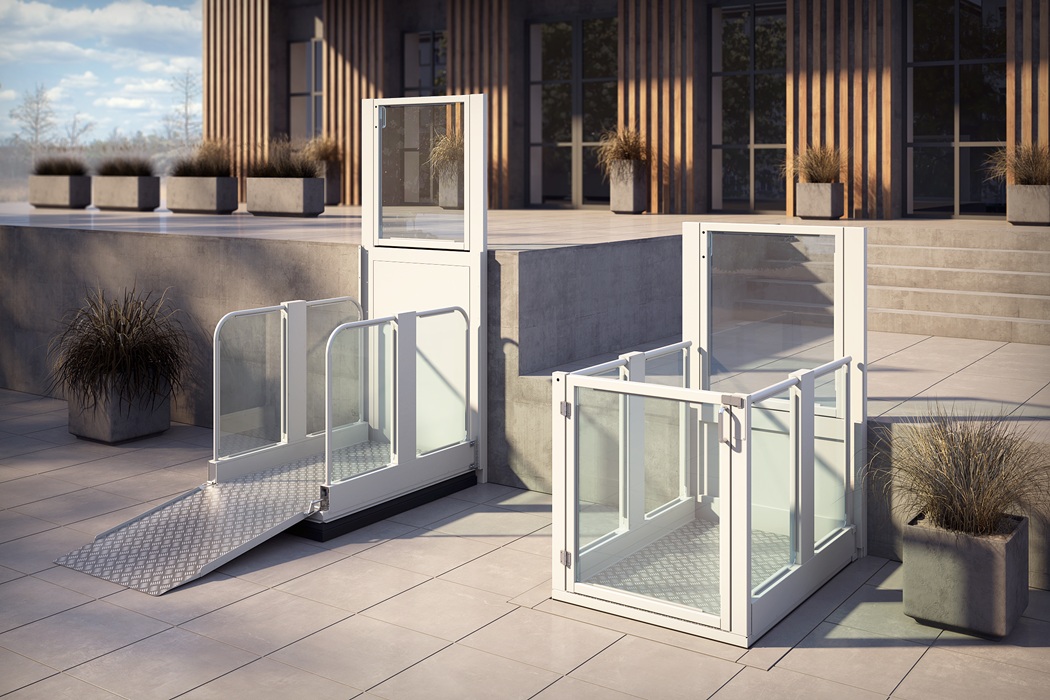

vertical platform lifts AGB140 and AGB145 Barduva

AGB140 lift advantages

Low Lifting Heights

Ideal for overcoming small height differences of up to 700 mm. This vertical platform lift is a perfect solution where a traditional elevator is not required.

Spacious Platform

The lift is designed to accommodate a wheelchair user and an accompanying person. The construction of this vertical platform lift ensures a lifting capacity of up to 300 kg.

Economical Alternative

A more affordable and simpler solution compared to traditional elevators. Installing this vertical platform lift does not require complex or expensive construction work.

Quick Installation

Features exceptionally short delivery times and a simple setup process. The vertical platform lift can be installed both indoors and outdoors.

Convenient Control

Equipped with automatic door opening and a wireless external controller. Users can independently operate the vertical platform lift from the platform panel or remotely.

Safe Movement

Electric scissor mechanism technology ensures stable and smooth lifting. This vertical platform lift guarantees a high level of safety during every trip.

Technical specifications

Max. lift height (mm)

700

Maximum load capacity (kg)

Up to 300

Driving speed (mm/s)

Collapsed platform height (folded, mm)

120

Net weight (kg)

230

Drive mechanism

Single scissor

Engine/motor power

2 x 24 V actuators / 0.35 kW

Energy supply

2 x 12 V batteries

Power supply unit for battery charger

1 x 230 V

Control stations at the stops

Radio-controlled

Standard platform size (mm)

1150 x 1570
